3D Large Area Laser Processing System

The 3D large area laser processing system mainly consists of XY galvo, dynamic focusing module, control card and upper computer software. By changing the position of the dynamic focusing mirror, its focus is still on the surface of the workpiece, so as to achieve the effect of the same diameter and small diameter of all the spots in the marking range. As a kind of galvo scanner head, mainly used in electronic communication, auto parts, precision hardware, instruments and meters, shoe materials, clothing, handicrafts, packaging, furniture, architectural models and other industries.

GET A QUOTE
laser-dynamic-focusing-system
laser-dynamic-focusing-system

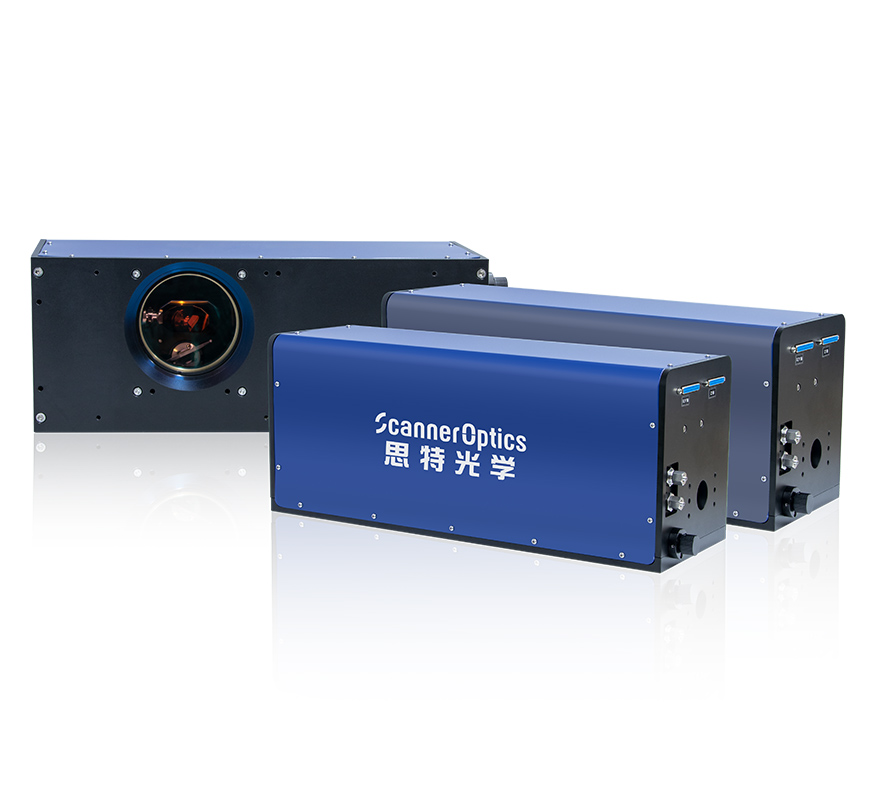

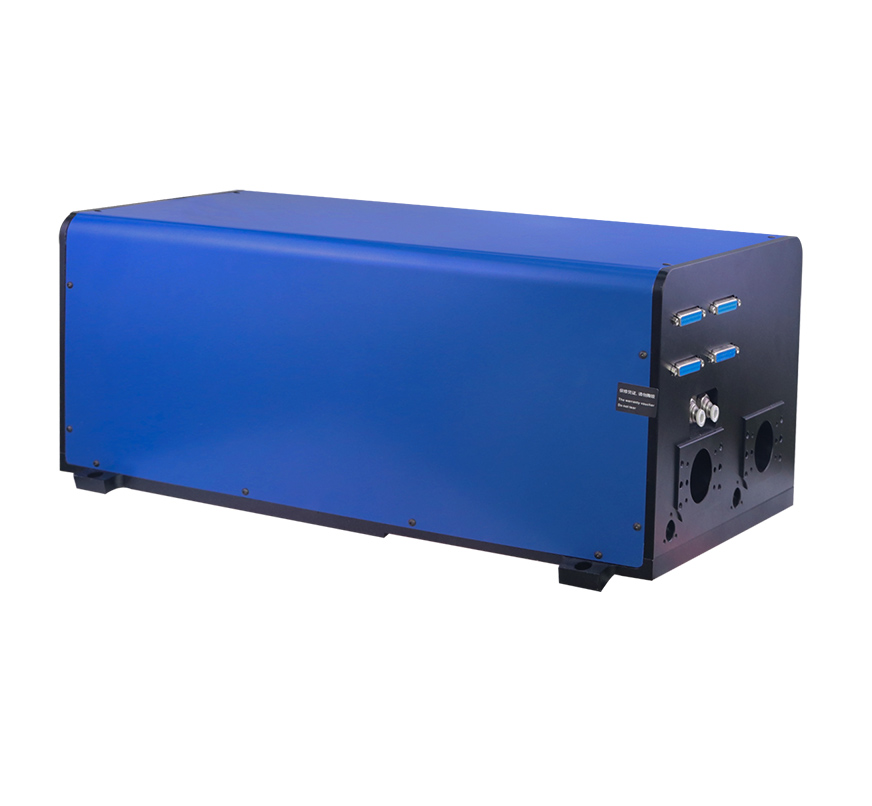

3d-dynamic-focusing-system

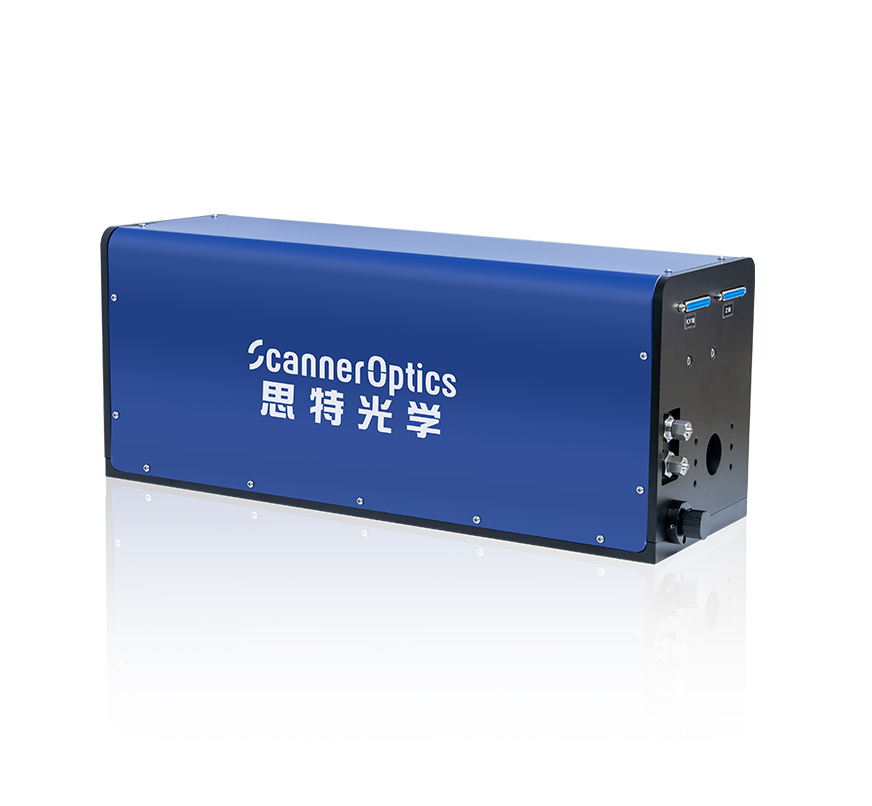

3d large field dynamic focusing system.jpg

Key Features of 3D Large Area Laser Processing System


  • The 3D large field Processing system is a solution which can realize 3D curved surface and large format under the combination of galvanometer scanning system and voice coil motor. Because the traditional laser scanning solutions can only scan flat surface and large scale.


  • Connected with computer through TCP/IP communication protocol, multiple scanner systems can be controlled by single one controller computer simultaneously.


  • When design the optical path, considering the focusing effect under the different format, ensure the minimum laser spot within the working range in order to focus the energy.

Products
Download
  • 3D 2.5D Scanning System Product Brochure
Leave a Message
*
*
*
*
*

Specifications of 3D Large Area Laser Processing System



CO2

IR

Ultraviolet

Scan Angle (°)

±11

±11

±11

System Emendation Orientation

Accuracy

≤0.1mm（Field Size≤800mm*800mm）

≤0.1mm（Field Size≤800mm*800mm）

≤0.1mm（Field Size≤800mm*800mm）

Repeatability (urad)

2

2

5

Max.Gain Drift (ppm/k)

80

80

8

Max.Offset Drift(uRad/k)

15

15

15

Long-Term Drift Over 8h (mrad)

≤0.3

≤0.3

≤0.1

Tracking Error (ms)

≤0.70

≤0.30/≤0.45/≤0.7

≤0.45

Wavelength(nm)

10600

1064

355

Incident Spot Diameter（mm）

15

7/10

6

Aperture Size (mm)

30

14/20/30

20

Maximum Laser Power Cw(w/cm²)

1000

1500

300




CONFIGURATION INSTANCE OF CO2 LASER


Field Size (mm*mm*mm)

1/e²The Smallest Spot Diameter1/e²(um)

Working Distance (mm)

100*100*0

181

96.5

250*250*10

304

241.5

500*500*150

568.2

550.5

750*750*300

832

860.5

1000*1000*500

1096

1169.5

1250*1250*700

1360

1478.5

1500*1500*900

1625

1788.5

2000*2000*1400

2145

2407.5




CONFIGURATION INSTANCE OF 14mm IR LASER


Field Size (mm*mm*mm)

1/e²The Smallest Spot Diameter1/e²(um)

Working Distance (mm)

200*200*40

45.2

177.4

250*250*60

52.1

239.3

300*300*80

60.7

301.2

350*350*100

70

363.0

400*400*120

79.3

425.0




CONFIGURATION INSTANCE OF 20mm IR LASER


Field Size (mm*mm*mm)

200*200*30

400*400*70

500*500*100

600*600*120

700*700*150

800*800*180

900*900*220

1000*1000*240

1200*1200*320

The Smallest Spot Diameter 1/e² (um)

25.75

49

65

77

89

101

113

125

148.5

Working Distance (mm)

184.7

432.2

618.8

679.7

866.3

927.2

1113.8

1174.7

1422.2




CONFIGURATION INSTANCE OF 30mm IR LASER


Field Size (mm*mm*mm)

800*800*50

1000*1000*200

1200*1200*450

1300*1300*550

1400*1400*700

1500*1500*850

The Smallest Spot Diameter 1/e² (um)

70

84

100

108

116

124

Working Distance (mm)

921.6

1169.1

1416.6

1540.3

1664.1

1787.9




CONFIGURATION INSTANCE OF ULTRAVIOLET LASER


Field Size (mm*mm*mm)

1/e²The Smallest Spot Diameter1/e²(um)

Working Distance (mm)

200*200*30

11

212

300*300*50

15

309

500*500*100

26

556

700*700*150

34

804

1000*1000*240

46

1175

1200*1200*320

55

1423
