Beam Expander

A laser beam expander is a key optical component in laser processing systems, designed to adjust both the diameter and divergence angle of a laser beam. Often used in conjunction with an F-Theta lens, it enables the expanded beam to be focused into a smaller spot size, improving precision in applications such as laser marking, engraving, welding, and cutting. The magnification of a laser beam expander refers to the ratio of the output beam diameter to the input beam diameter.

GET A QUOTE

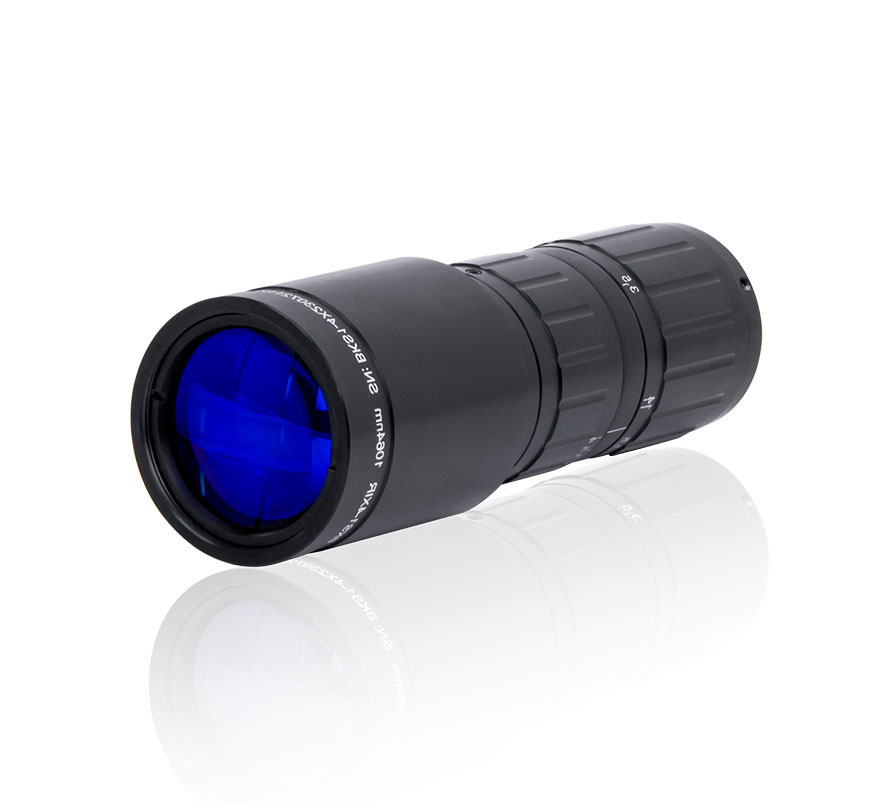

beam expander
beam expander

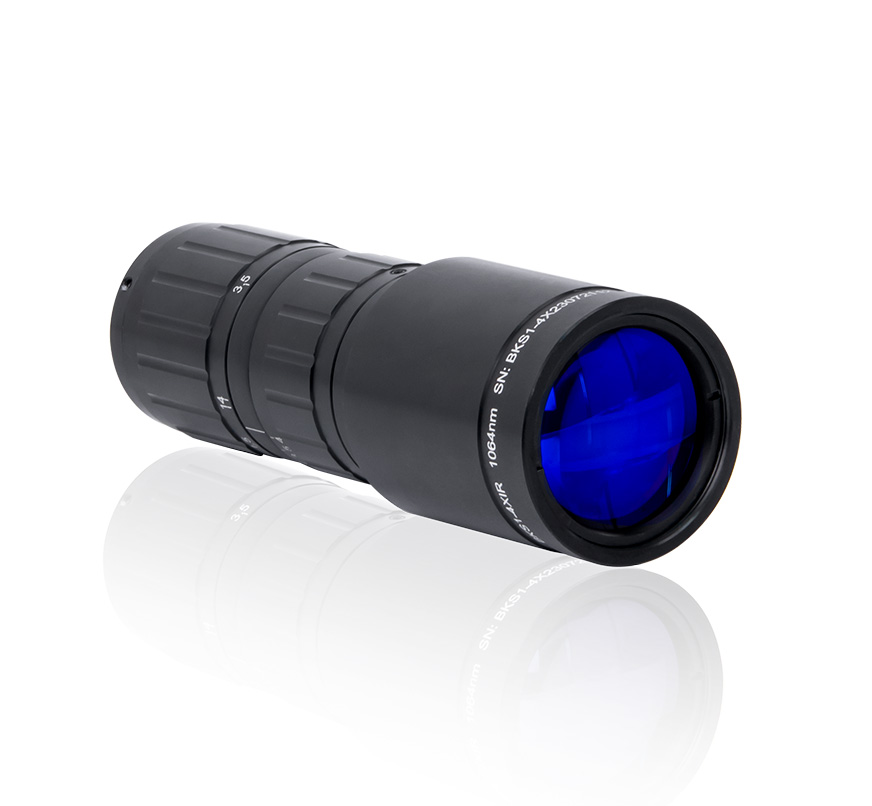

laser beam expander

Key Features of Laser Beam Expander

Designed by our expert optical design team, each Laser Beam Expander delivers precision and reliability for a wide range of laser applications.


  • High-Precision Beam Expansion

    Ensures a uniform beam profile with minimal distortion, making it ideal for 355 nm (UV), 532 nm (green), and 1030–1080 nm (fiber) laser systems.


  • Adjustable or Fixed Magnification Options

    Available in Zoom Beam Expander and fixed versions to meet different optical system requirements.  Expansion ratios from 1x to 6x


  • Compact and Durable Design

    Lightweight, robust, and easy to integrate into laser marking, engraving, or scanning systems.





Products

Specifications of Beam Expander


Part Number

Magnification

Clear Input Aperture (mm)Max. Input Beam Aperture (mm)Max. Output Beam Aperture (mm)Wavelength (nm)Outer Dimensions (mm*mm)

Connection

Method

BKS1-4XIR

1-4X

Φ14Φ8.5Φ381030-1080Φ52*L151Φ52mm Clamp
BKS1-4XIRWAT1-4XΦ14Φ8.5Φ381030-1080Φ52*L151M50x1.0 Thread
BKS3-6XIR3-6XΦ10Φ6Φ381030-1080Φ52*L151Φ52mm Clamp
IRD10KS2X2XΦ14Φ10Φ381030-1080Φ46*L108Φ38mm Clamp
D10KS2.2XIRWAT 2.2XΦ14Φ10Φ321030-1080Φ46*L87.5M30x1.0 Thread
2D10KS2XIRWAT 2XΦ10Φ32Φ321030-1080Φ46*L87.5M22x0.75 Thread
UVD10KS2X2XΦ14Φ10Φ38355Φ46*L85Φ38mm Clamp
D12KS2XG2XΦ14Φ12Φ38532Φ46*L85Φ38mm Clamp
D12KS3XG3XΦ14Φ12Φ38532Φ48*L85Φ38mm Clamp



Galvanometer Application

Laser Welding Laser Marking Laser Drilling Laser Cutting Micromachining Medical Aesthetic Ophthalmic Imaging 3D Printing Lithium Battery Laser Cleaning
