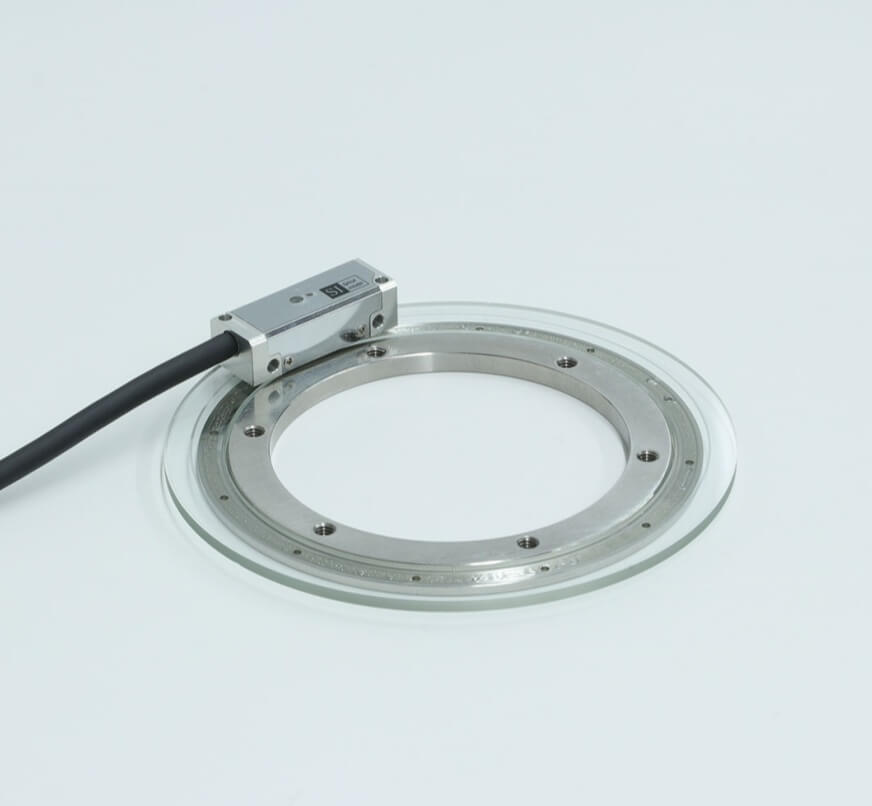

The optical rotary encoder consists of a precision circular optical scale and a compact readhead, providing high-resolution position feedback for demanding motion control applications.

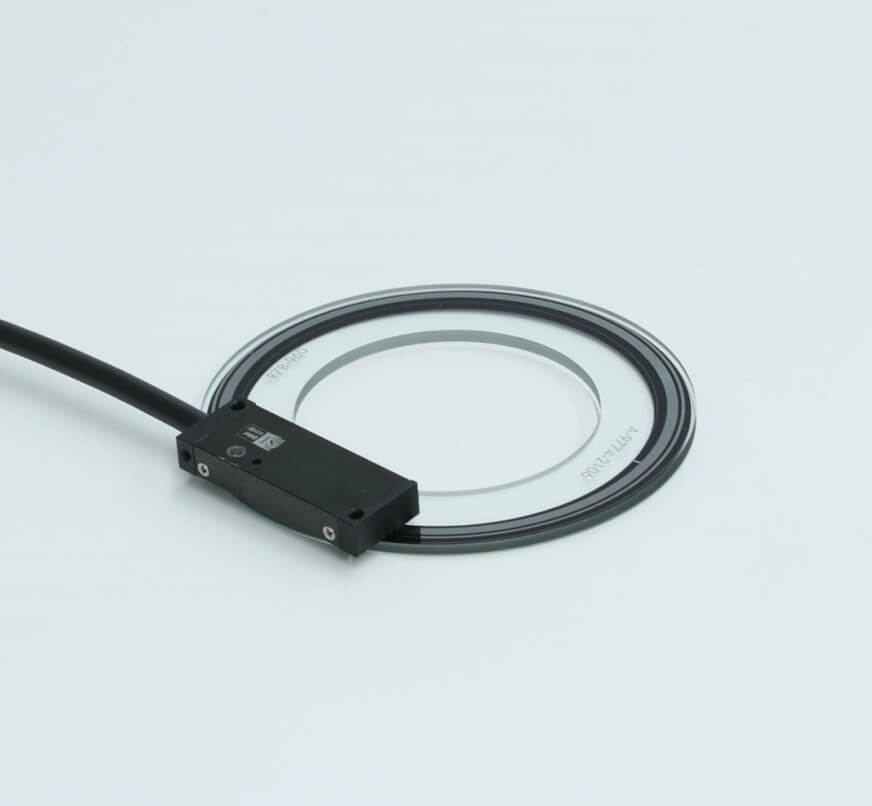

The compact readhead features a built-in LED indicator for easy installation and setup. It provides digital output resolution up to 32 nm, while the integrated index detector simplifies system integration and enhances positioning reliability.
Non-contact Design: Utilizes a non-contact optical sensing principle to eliminate mechanical wear, ensuring long-term stability and durability.
High-resolution Output: Offers digital output resolution up to 32 nm, enabling ultra-precise positioning and measurement.
Compact Readhead with Built-in LED Indicator: The compact readhead features an integrated LED for easy installation and alignment verification.
| Parameter | |
| Readhead dimensions（mm） | Standard： 36×13.5×10.2； Ultrathin： 40×15×6.4 |
| Output | Differential 1Vpp sin/cos and Index Index signal or Differential A-quad-B and Index Index signal |
| Resolution(Digital output) | Rotary：Up to 8,000,000cpr |
| Rotary accuracy | ≤ ±2.1arc-sec |
| Power supply | 5VDC±5% @165mA (120Ω across A, B, I) 5VDC±5% @105mA (120Ω across Sin/Cos,I) |
| Maximum velocity | 10m/s |
| Index Signal | 1/4Pitch period(Differential 1Vpp sin/cos output) 1LSB(Differential A-quad-B output) |
| Signal status indicator | Available |
| Operating Environment | Atmosphere |
| Pitch | ≤256 µm and other options |
| Repeatability | 1 LSB(>50nm resolution）； 72nm(≤50nm resolution) |
| Typical cyclical error（SDE） | 72 nm |
| Mass | <18g （ Readhead）， <100 g/m（ Cable） |
