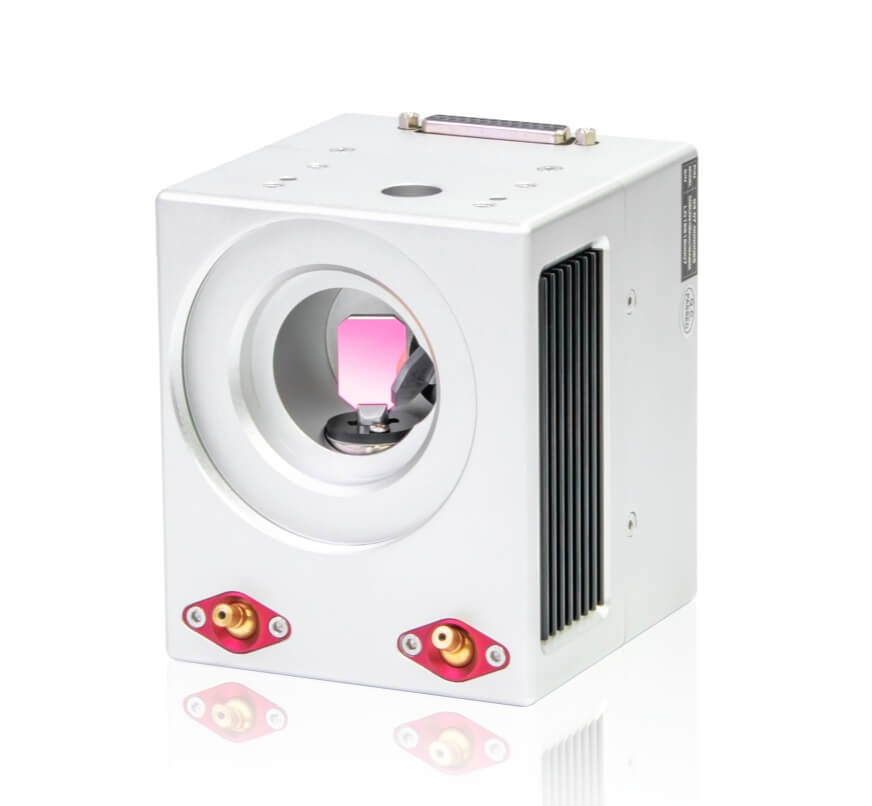

Economy Galvo Laser Head, with various coating options, including UV, green, optical fiber, CO2 and other coating options. The size of this galvo scanner head is compact, and the single driver board drives two galvanometers at the same time, which is cost-effective.
Based on analog driver technology
High accuracy photo-sensor as feedback
Applicable to a variety of F-theta lenses
Modular design, easy integration and maintenance
Widely used in general laser marking, flying marking, semiconductor, and electronic industry applications
Model | EcoScan 10mm | EnoughScan 10mm | UniScan 10mm |
Input Beam Aperture (mm) | 10 | 10 | 10 |
Beam Displacement (mm) | 12.54 | 12.54 | 12.54 |
Tracking Error (ms) | 0.25 | 0.20 | 0.20 |
Repeatability (µrad) | ＜3 | ＜3 | ＜2 |
Offset Drift (µrad/K) | ＜30 | ＜30 | ＜25 |
Gain Drift (ppm/K) | ＜110 | ＜110 | ＜100 |
Long-term drift over 8 hours (mrad) | ＜0.40 | ＜0.50 | ＜0.20 |
1% Of Full Scale (ms) | 0.40 | 0.50 | 0.30 |
10% Of Full Scale (ms) | 0.30 | 1.30 | 1.00 |
Positioning Speed (m/s) | 9.0 | 9.0 | 10.0 |
Typical Scan Angle (°) | ±25 | ±25 | ±25 |
Gain Error (mrad) | <10 | <10 | <10 |
Zero Offset (mrad) | <10 | <10 | <10 |
Nonlinearity (%) | <1 | <1 | <1 |
Power Requirements | ±15VDC, ≥3A | ±15VDC, ≥3A | ±15VDC, ≥3A |
Digital Interface | XY2-100 | XY2-100 | XY2-100 |
Operation Temperature (℃) | 25±10 | 25±10 | 25±10 |
Weight (kg) | 1.9 | 1.9 | 1.9 |
