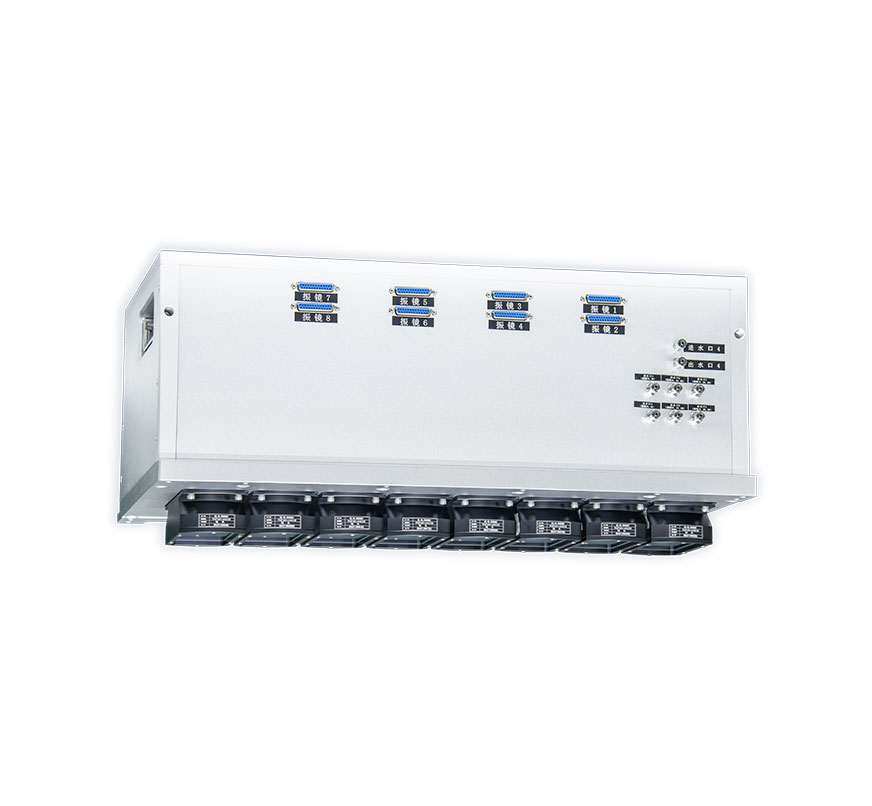

This 8-head galvo scan head integrates multiple scan heads into a single compact unit, greatly reducing system footprint and maximizing equipment density. Synchronized multi-head operation enhances processing efficiency and maximizes overall printing throughput.
In-house developed grating optical encoder, with position resolution of up to 23bit.
In-house developed digital driver, providing the feedback loop of position and status.
High accuracy, with long-term drift<50urad.
Multiple galvo scan heads are highly integrated into a single unit, significantly reducing system footprint and enabling higher equipment density.
Synchronized multi-head operation significantly improves processing efficiency and overall printing throughput.
| ExtraScan 8 Scan Head | |
| Galvo Scanner | 14mm |
| F-theta Lens | F450 |
| Single-head Scanning Field | 320×240 mm |
| Eight-head Scanning Field | 765×320 mm |
| Focus Spot Uniformity | Full-field spot variation<5% |
| Total Transmittance (Galvo + Field Lens) | ≥98.5% (central area), ≥97% (edge area) |
| Focus Spot Diameter | 80 μm (9 mm input beam, 1/e²) |
| Circularity | ≥97% (focal position), ≥90% (±5 mm defocus) |
| M² | <1.1 (1060–1090 nm, M²=1.05–1.1 laser source) |
| Thermal Lens Effect | <0.2 mm (300 W single-mode CW laser) |
| Accessories | 1.2× beam expander, F90 Collimator |
