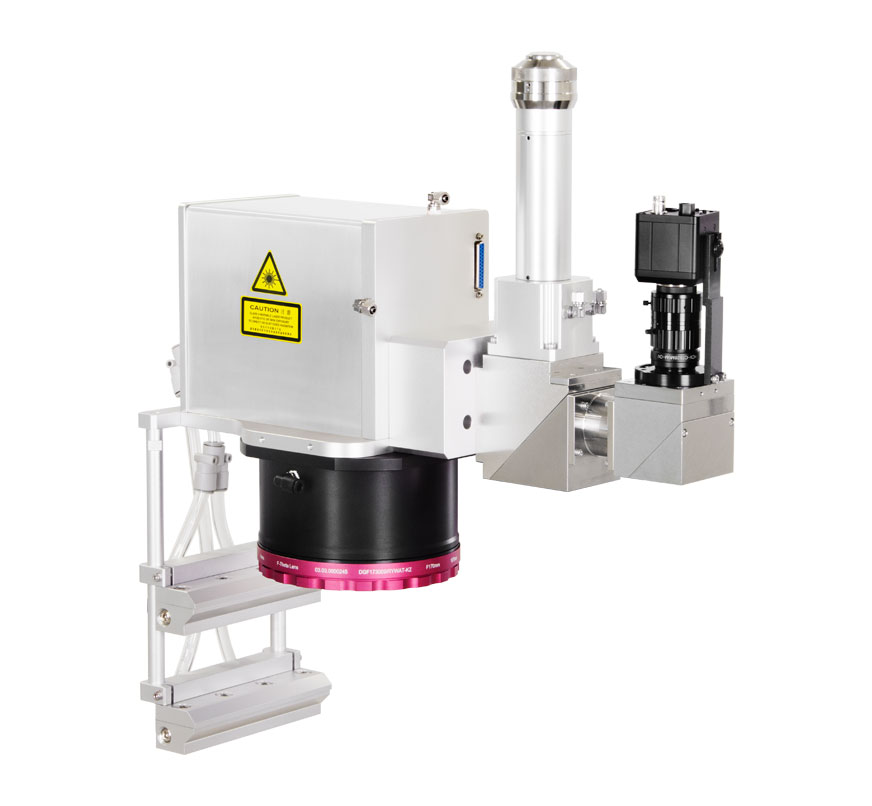

This medium-power galvanometer welding system offers high performance and reliability. It uses high-speed, high-precision digital galvanometers with welding speeds up to 3000 mm/s, greatly improving efficiency. A closed-loop system ensures accuracy and stability, while safety features allow laser shutdown within 10 ms for secure operation.
High Precision Scanning: Utilizes galvanometer-based scanning systems for rapid and precise laser beam positioning.
Fast Processing Speed: Enables high-speed galvo laser welding operations due to the quick and accurate movement of the laser beam.
Versatility in Materials: Suitable for welding a wide range of materials, including metals, alloys, and plastics.
Fine Control and Resolution: Provides fine control over the laser beam, resulting in high-resolution welds with minimal heat-affected zones.
Automated Processing: Supports automated and programmable laser welding galvanometer processes, enhancing efficiency and repeatability.
Compact Design: Often features a compact and ergonomic design, making galvo laser welding suitable for various manufacturing environments.
Real-Time Monitoring: Incorporates real-time monitoring systems to ensure quality control during the galvo laser welding process.
User-Friendly Interface: Equipped with an intuitive user interface, making laser welding galvo accessible for operators with varying levels of expertise.
Item | Technical Parameters |
Maximum Laser Power（w） | 2000 |
Laser Wavelength（nm） | 1070±10 |
Effective Focal Length of F-theta Lens (mm) | 254, 330, 460 |
Welding Range (mm) | 120x120(F=254)、170x170(F=330)、220x220(F=460) |
Working Height（mm） | 318(F=254)、420(F=330)、570(F=460) |
Effective Focal Length Of Collimator（mm） | 100，125, 150, 200 |
Optical Fiber Connection Mode | QBH |
Clear Aperture（mm） | 30 |
Maximum Welding Speed（mm/s） | 3000 |
Working Temperature（℃） | 25±10 |
Weight（kg） | 16 |
