UltraScan Head

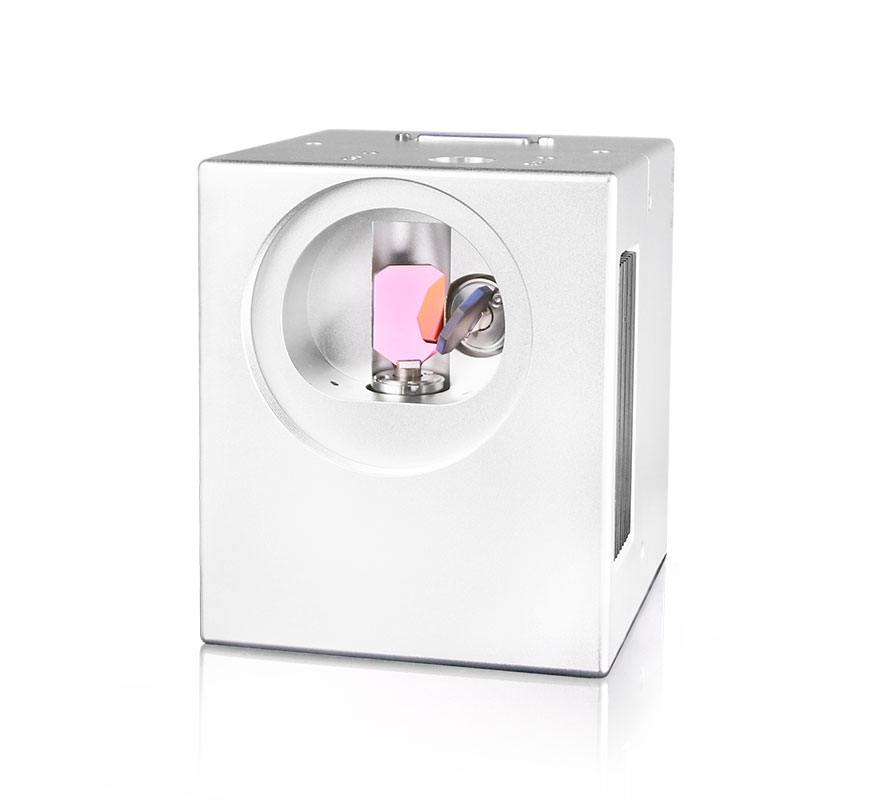

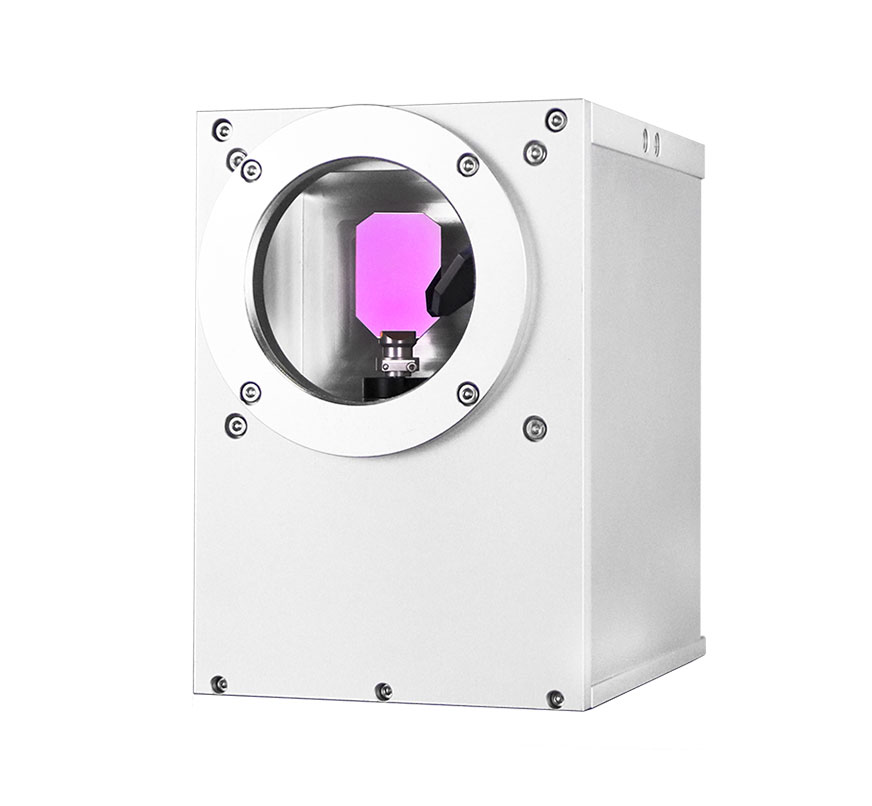

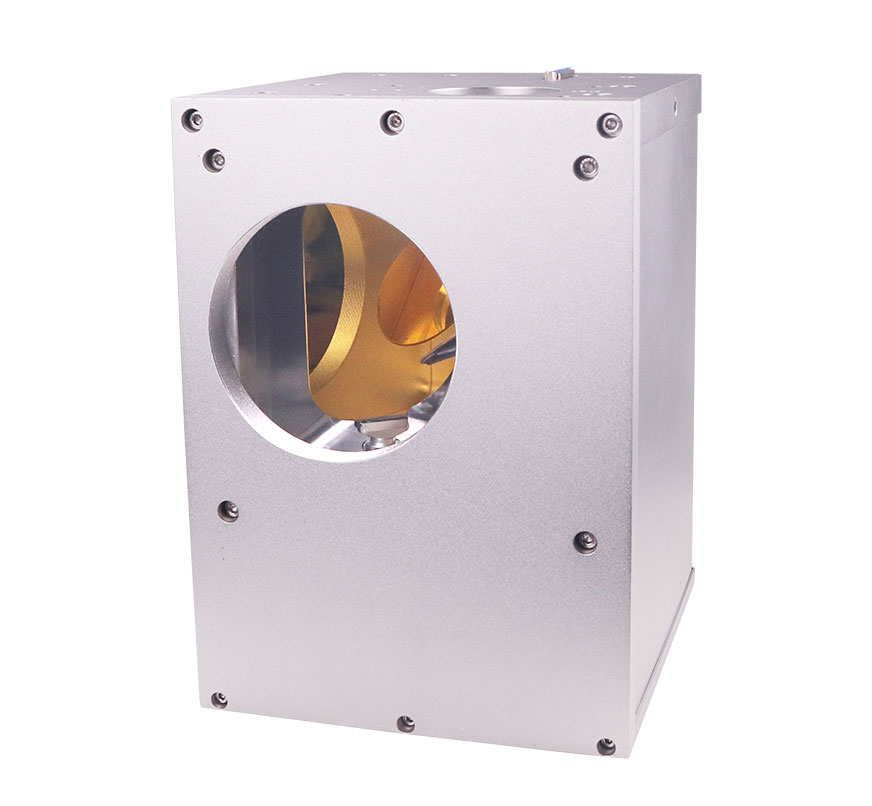

UltraScan laser scan heads cover a comprehensive range of models: 10/14/20/30/50mm aperture 2D Galvanometers, 14/20/30mm aperture 3D galvanometers. This 2 axis mirror galvanometer coating selection is rich, UV, green, fiber, CO2 and other coating options, strict mirror quality, to ensure the requirements of mirror flatness and damage threshold. The driver board adopts class D power amplifier, with high output power, small heating and small drift. Strict factory inspection standards ensure the quality of the galvo head laser and very low repair rate.

GET A QUOTE
galvanometer scan head
galvanometer scan head
scan heads
galvo scanner head

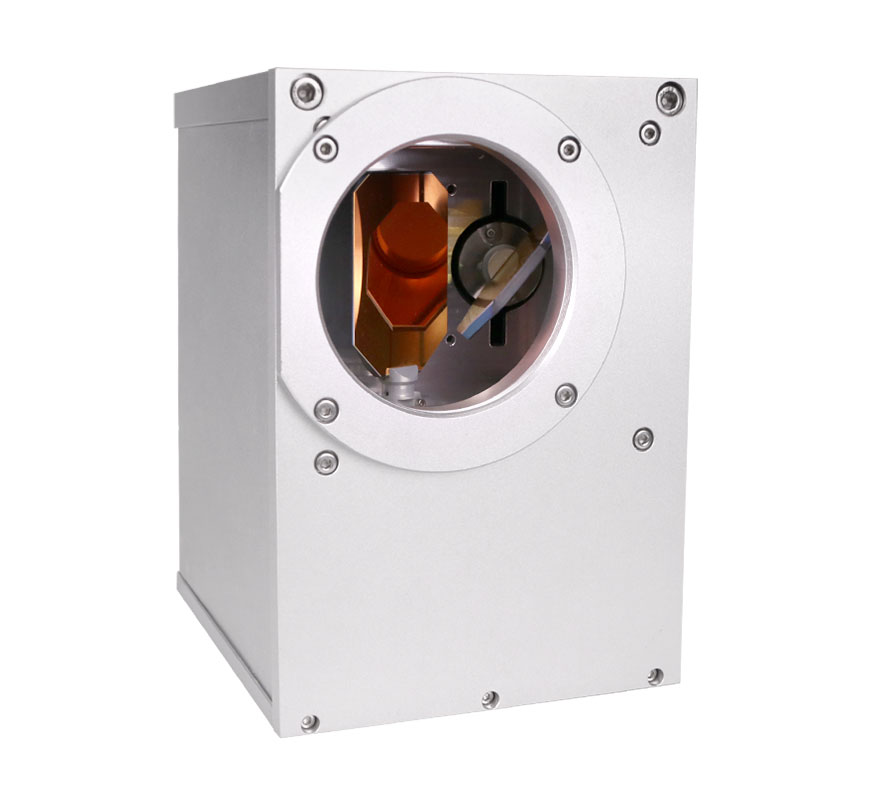

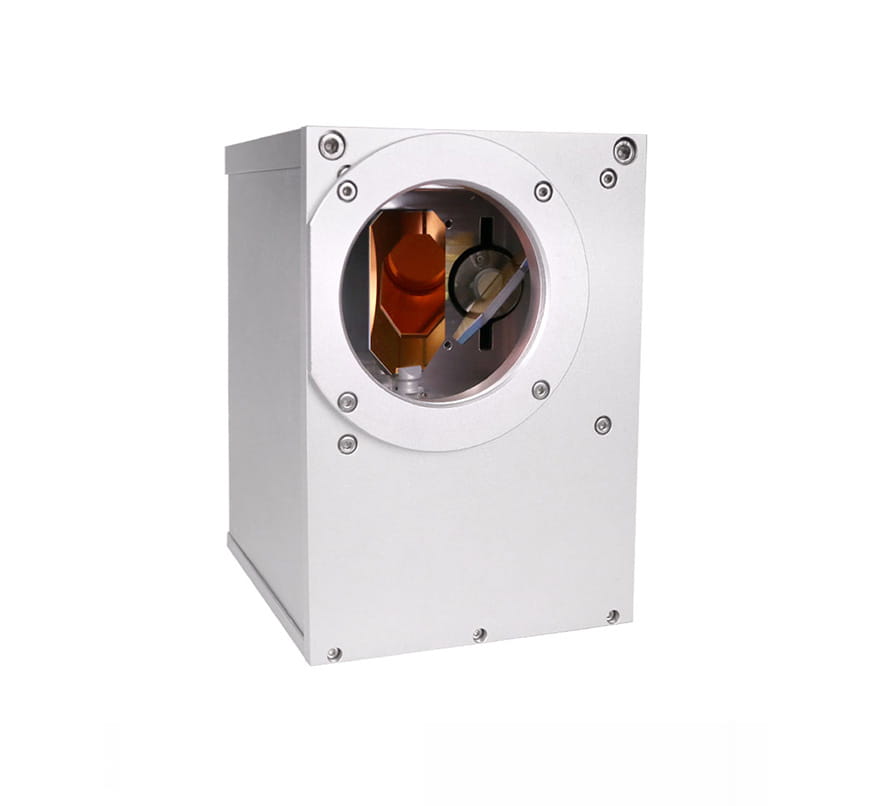

galvo head co2 laser
galvo scan head

Key Features of UltraScan Head


  • Low noises, high linearity and low drift


  • Modular design, easy installment and maintenance


  • Support varieties of F-theta lenses


  • Available to general protocol (XY2-100) and other protocol


This galvo scan head series is designed for processing non-metallic materials and select metals. It is widely used in laser marking and cutting applications, including packaging (food, beverage, and pharmaceutical), ceramics, electronic components, consumer device housings, buttons, nameplates, PCB barcodes, wire stripping, and film cutting.


With stable performance, excellent versatility, and high processing accuracy, it meets the needs of both mass production and customized manufacturing, making it an ideal solution for modern laser processing applications.

Products
Download
  • Ultrascan 10mm Analog Dimensions
  • Ultrascan 10mm Digital Dimensions
  • Ultrascan 14mm Dimensions
  • Ultrascan 20mm Dimensions
  • Ultrascan 30mm Dimensions
  • Ultrascan 50mm Analog Dimensions
Show More
Leave a Message
*
*
*
*
*

Specifications of UltraScan Head



UltraScan I

UltraScan14

UltraScan20

UltraScan30

UltraScan50

Input Beam Aperture (mm)

14

20

30

50

Beam Displacement (mm)

16.42

25.25

35.61

62.25

Tracking Error (ms)

0.23

0.45

0.70

1

Repeatability (µrad)

＜2

＜2

＜2

＜2

Offset Drift (µrad/K)

＜15

＜15

＜15

＜15

Gain Drift (ppm/K)

＜80

＜80

＜80

＜80

Long-term drift over 8 hours (mrad)

＜0.3

＜0.3

＜0.3

＜0.3

1% Of Full Scale (ms)

0.65

0.80

1.20

1.5

10% Of Full Scale (ms)

1.60

2.50

4.50

6.5

Positioning Speed (m/s)

10.0

5.0

3.0

1

Typical Scan Angle (°)

±25

±25

±25

±25

Gain Error (mrad)

<5

<5

<5

<5

Zero Offset (mrad)

<5

<5

<5

<5

Nonlinearity (%)

<0.4

<0.4

<0.4

<0.4

Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

Communication protocol

16bit:XY2-100

20bit:ST2-100

16bit:XY2-100

 20bit:ST2-100

16bit:XY2-100

20bit:ST2-100

16bit:XY2-100

 20bit:ST2-100

Operation Temperature (℃)

25±10

25±10

25±10

25±10

Weight (kg)

2.3

5.0

5.2

8.8



UltraScan II

UltraScan II 7

UltraScan II 10

UltraScan II 14

UltraScan II 20

UltraScan II 30

Input Beam Aperture (mm)

7

10

14

20

30

Beam Displacement (mm)

9.77

12.54

16.42

25.25

35.53

Tracking Error (ms)

0.15

0.12

0.15

0.35

0.6

Repeatability (µrad)

＜2

＜2

＜2

＜2

＜2

Offset Drift (µrad/K)

＜20

＜12

＜12

＜12

＜12

Gain Drift (ppm/K)

＜100

＜50

＜50

＜50

＜50

Long-term drift over 8 hours (mrad)

＜0.4

＜0.15

＜0.15

＜0.15

＜0.15

1% Of Full Scale (ms)

0.22

0.30

0.35

0.70

1.10

10% Of Full Scale (ms)

0.80

0.80

0.90

2.40

4.40

Positioning Speed (m/s)

25

18

14

6.0

4.0

Typical Scan Angle (°)

±25

±25

±25

±25

±25

Gain Error (mrad)

<5

<5

<5

<5

<5

Zero Offset (mrad)

<5

<5

<5

<5

<5

Nonlinearity (%)

<0.4

<0.4

<0.4

<0.4

<0.4

Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

±15VDC, ≥3A

Communication protocol

XY2-100


XY2-100


XY2-100


XY2-100


XY2-100


Operation Temperature (℃)

25±10

25±10

25±10

25±10

25±10

Weight (kg)

1.6

2.3

2.3

5.0

5.2


Galvanometer Application

Laser Welding Laser Marking Laser Drilling Laser Cutting Micromachining Medical Aesthetic Ophthalmic Imaging 3D Printing Lithium Battery Laser Cleaning
Please Contact Us!
