UltraScan II GS Galvo Head

UltraScan II GS Galvo Head is designed for high-speed and high-precision laser processing applications. It delivers a maximum scan speed exceeding 240 rad/s and supports fiber laser power up to 3 kW. A newly engineered water-cooling structure ensures thermal stability during continuous operation. With high positioning accuracy, the system achieves long-term drift of less than 100 μrad, enabling stable and repeatable laser scanning performance.


GET A QUOTE

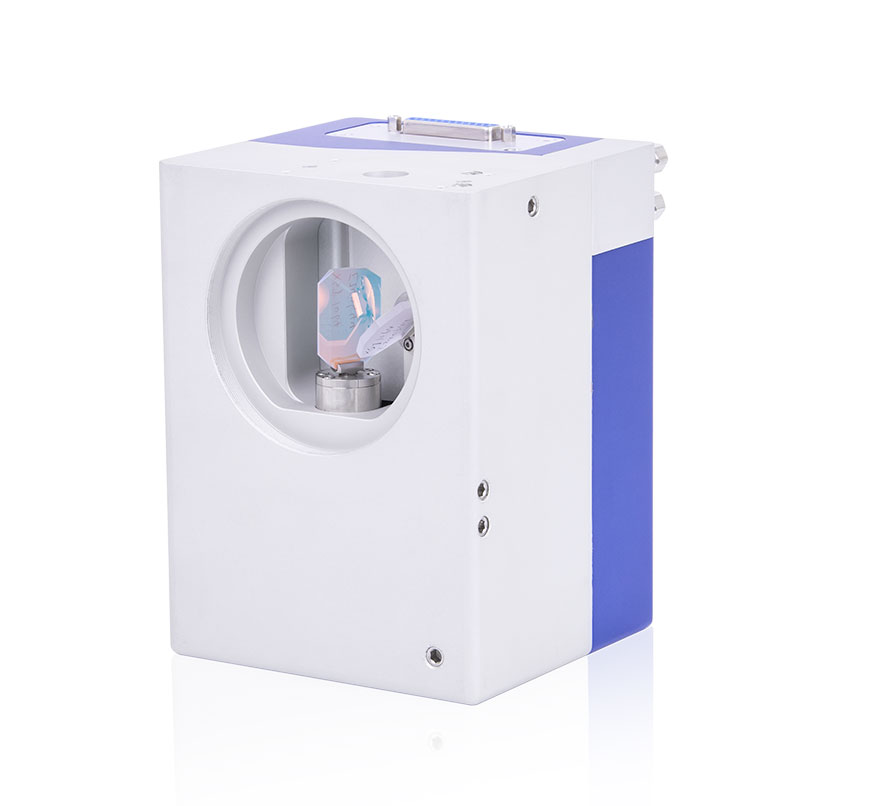

galvo scanner head
galvo scanner head

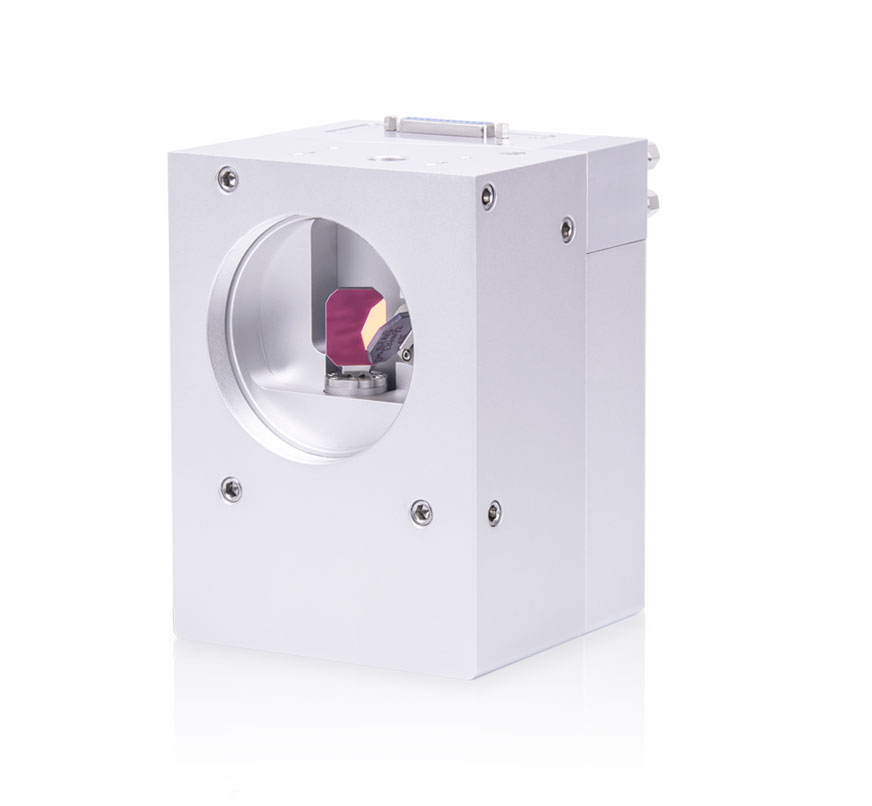

galvo head

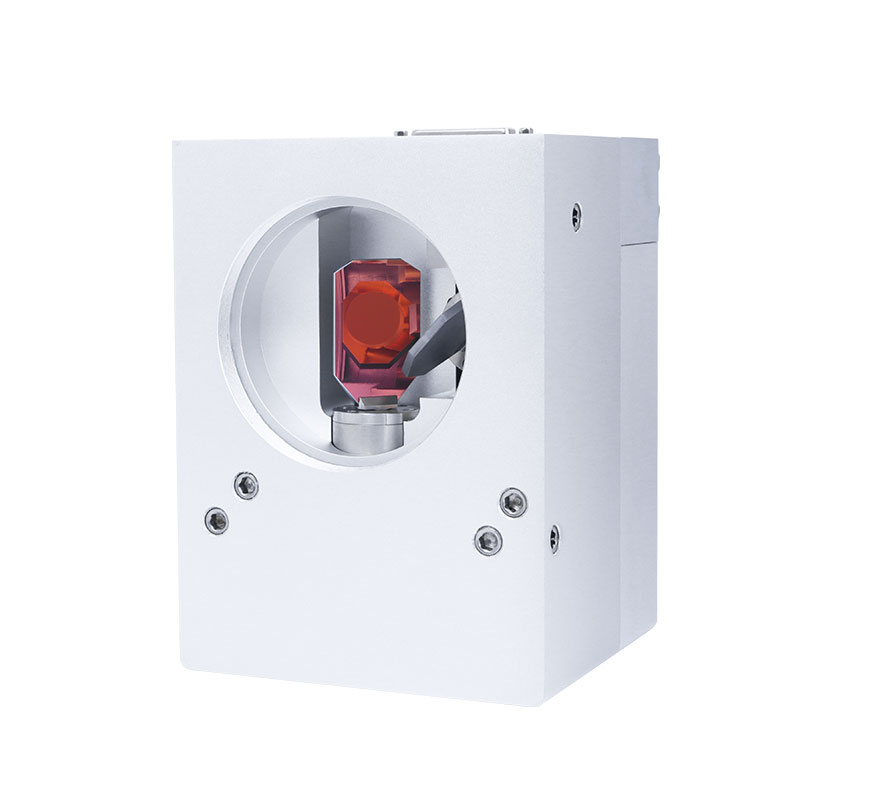

laser scan head

Key Features of UltraScan II GS Galvo Head


  • Maximum scan speed is greater than 240rad/s.


  • New water-cooling design to cool motor and drive efficiently.


  • Maximum 3KW fiber laser power.


  • High precision. Long term drift is less than 100μrad.


Products

Specifications of UltraScan II GS Galvo Head


UltraScan II-GS

10mm

14mm

15mm

20mm

30mm

Input Beam Aperture (mm)

10

14

15

20

30

Beam Displacement (mm)

12.54

16.42

19.32

25.25

35.53

Tracking Error (ms)

0.12

0.19

0.20

0.30

0.55

Repeatability (µrad)

＜2

＜2

＜2

＜2

＜2

Offset Drift (µrad/K)

＜12

＜12

＜12

＜12

＜12

Gain Drift (ppm/K)

＜50

＜50

＜50

＜50

＜50

Long-term drift over 8 hours (mrad)

＜0.1

＜0.1

＜0.1

＜0.1

＜0.1

1% Of Full Scale (ms)

0.28

0.38

0.45

0.70

1.00

10% Of Full Scale (ms)

0.7

0.72

0.8

1.1

3.0

Positioning Speed (m/s)

200@±15V

240@±24V

200@±15V

240@±24V

200@±15V

240@±24V

100@±15V

150@±24V

50@±15V

70@±24V

Typical Scan Angle (°)

±22

Gain Error (mrad)

<5

Zero Offset (mrad)

<5

Nonlinearity (%)

<0.2

Power Requirements

±15VDC-±24VDC, ≥10A

Communication protocol

16bit: XY2-100

Operation Temperature (℃)

25±10

Typical Water Requirements51/min at △p<0.1 bar，P<4 bar

Weight (kg)

1.9

2.5

2.5

5.0

5.2


Galvanometer Applications

Laser Welding Laser Marking Laser Drilling Laser Cutting Micromachining Medical Aesthetic Ophthalmic Imaging 3D Printing Lithium Battery Laser Cleaning
