Smart Laser Scanner

Hashu serie is a highly integrated galvanometer scanning system. The galvanometer control card is perfectly integrated into the inside of the scan head, and the Ethernet connection to the computer can be used for marking. The galvanometer driver board and laser control card are integrated into one system, and the reliability is very high. Special optimization realizes synchronous real-time control of galvanometer and laser, and supports remote control within LAN. The built-in control card adopts dual-core ARM architecture with powerful performance. Scanworld laser machining software requires no driver installation and is easy to use.

GET A QUOTE
Laser Scanning Solutions
Laser Scanning Solutions
3d Scanning Solutions
3d Laser Scanning Technology
Smart Laser Scanner

Key Features Of Smart Laser Scanner


Product composition: Laser processing head; Laser marking software


Scanner: Adopt dual-core ARM architecture and dominant Frequency 800MHz, equipping with 512MB DDR3 memory and onboard 256 Mbit

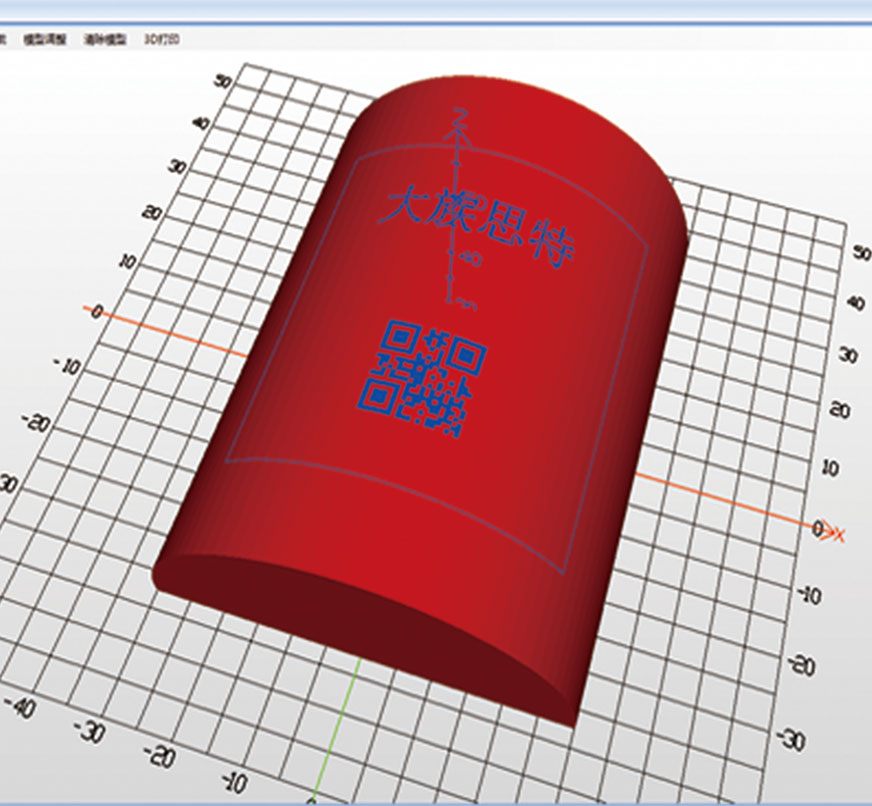

ScanWorld: High-precision BOX correction function with calibration precision up to 6μm and support 3D focus calibration


  • Easy to use without the extra installed control card


  • Easy to make wire with good reliability


  • Remotely control in LAN


  • Support SD card storage and work offline marking.

Download
  • 10mm Hashu Dimensions
  • 14mm Hashu Dimensions
Leave a Message
*
*
*
*
*

Specifications Of Smart Laser Scanner



10mm

14mm

Input Beam Aperture (mm)

10

14

Beam Displacement (mm)

12.54

16.42

Tracking Error (ms)

0.18

0.30

Repeatability (µrad)

<2

<2

Offset Drift (µrad/K)

<15

<15

Gain Drift (ppm/K)

<80

<80

Long-Term Drift Over 8 hours (mrad)

<0.3

<0.3

1% Of Full Scale (ms)

0.40

0.65

10% Of Full Scale (ms)

1.20

1.60

Positioning Speed (m/s)

10.0

7.0

Typical Scan Angle (°)

±12.5

±12.5

Gain Error (mrad)

<5

<5

Zero Offset (mrad)

<5

<5

Nonlinearity (%)

<0.4

<0.4

Power Requirements

±15VDC, ≥3A

±15VDC, ≥3A

Operation Temperature (℃)

25±10

25±10

Weight (kg)

1.9

2.3


Galvanometer Application
